PWT 101 testing device for correct operation

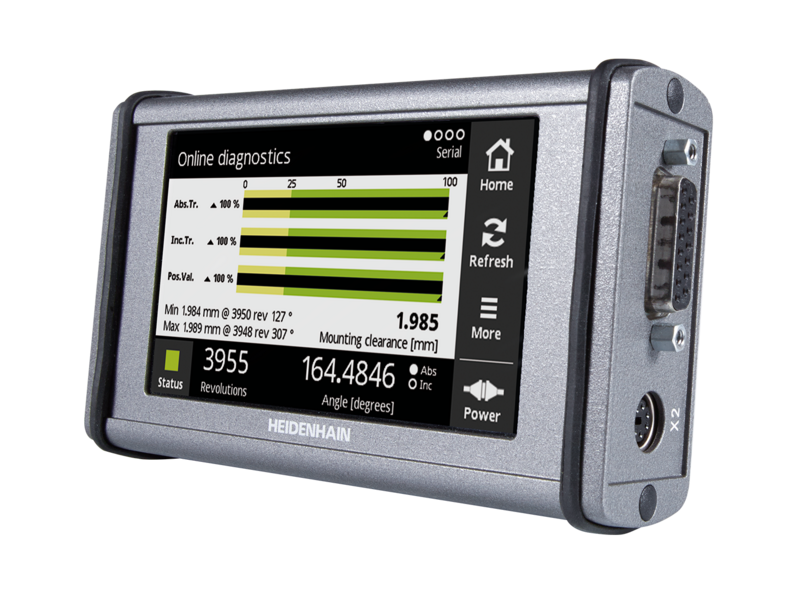

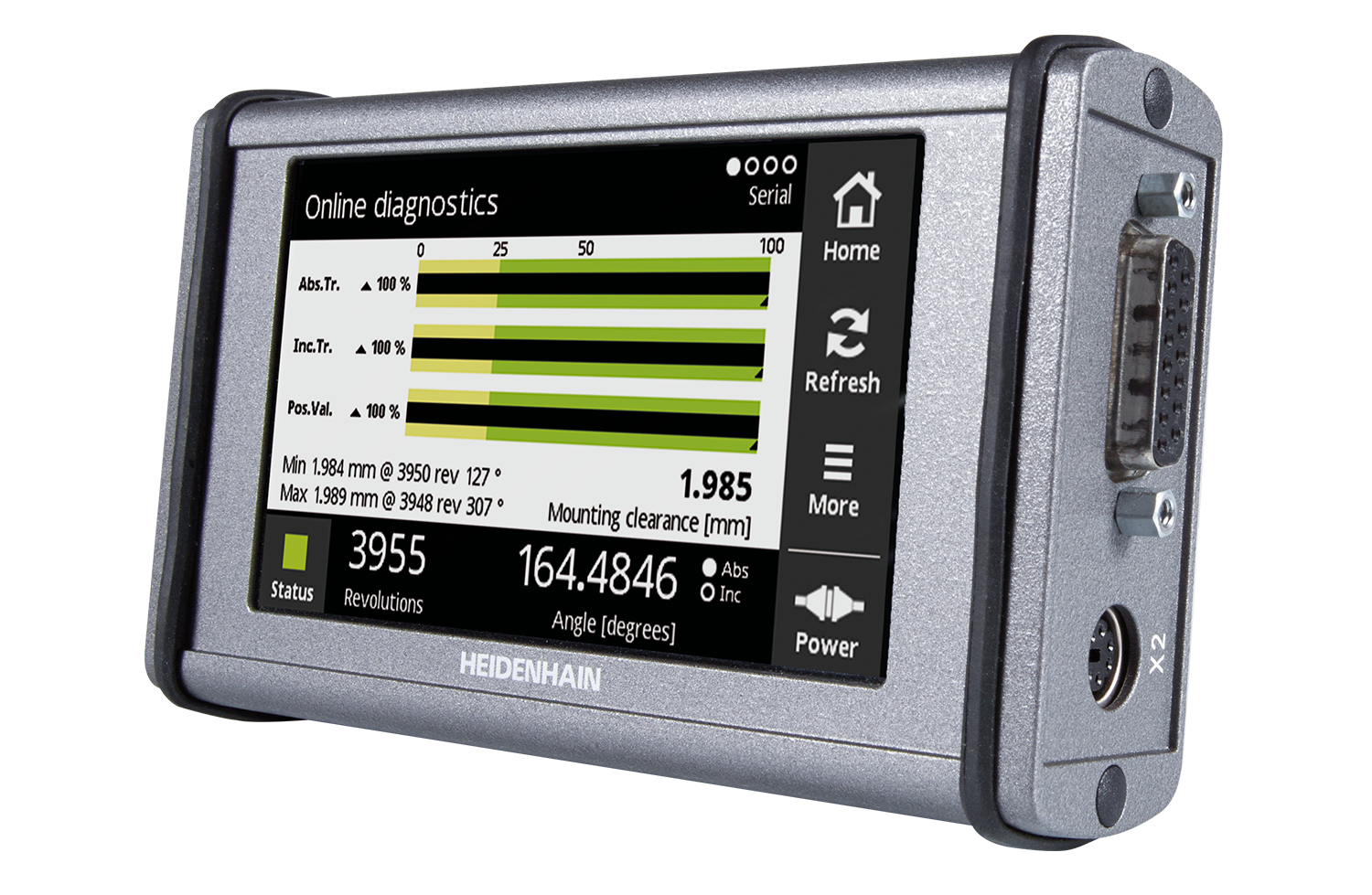

Testing device for functional testing and adjustment of incremental and absolute HEIDENHAIN encoders

4.3-inch touchscreen
Functional testing
Adjustment
Compact dimensions
Practical service case
Ideal for portable use

Diagnostics directly at the encoder

The encoder is directly connected to the testing device. This enables a comprehensive analysis of the HEIDENHAIN encoder functions.

Continuous development

The PWT 101 function range is being improved continuously: easy and fast download of firmware updates from the HEIDENHAIN website and installation with a memory card.

Contact person – Sales

International Sales

+49 8669 31-3142

internationalsales@heidenhain.de

Find your nearest representative

Downloads

Product information

User Documentation

Application-oriented design

Information about the product

Click the plus signs to learn more about the product.

Encoder inputs

EnDat / 1 Vpp / 11 μApp / TTL / Fanuc Serial Interface / Mitsubishi high speed interface / Panasonic Serial Interface / Yaskawa Serial Interface

Useful functions

Depending on the encoder or the encoder interface: display of the position value, read online diagnostics, shift datums, and perform other inspection functions
